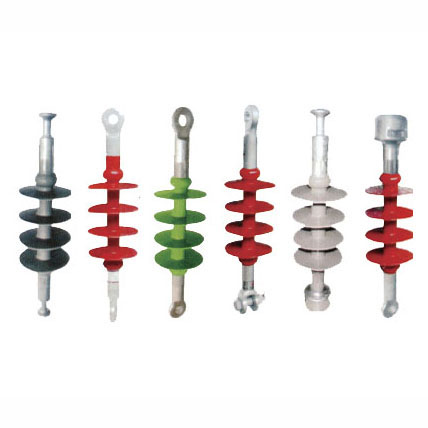

Tension Composite Insulator

If you have any questions, please contact us!

hongxiu4u@gmail.com

0086-577-62890982

General

The tension composite insulator is suitable for the polluted area,
especially for the severe pollution area, featured with high tensile
strength, perfect anti-pollution performance, covenient operation and
installation, It adopts various fitting coupling structure, very compact in
connection with the line fittings.

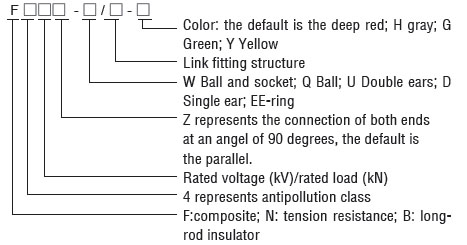

Model

Structure representation

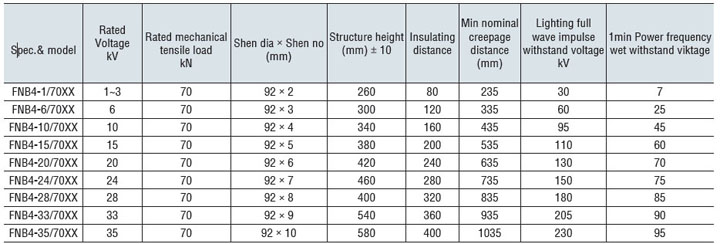

Main technical parameters

Table of end fitting type

Notification for order: 1.The model of fitting should be added with the letters according to the requirements of both ends; 2. The end fittings should be
designed and fitted accoriding to customer's desire; 3. The red sillicon rubber is defaulted, gray, green, yellow, blue and black is selectable.

Prev:Composite Suspension Insulator

Next:Composite Pin-type Insulator

Related Products

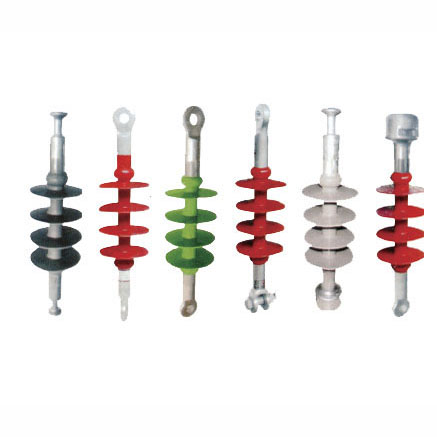

Composite Pin-type Insulator Composite Pin-type Insulator Composite Pin-type Insulator
