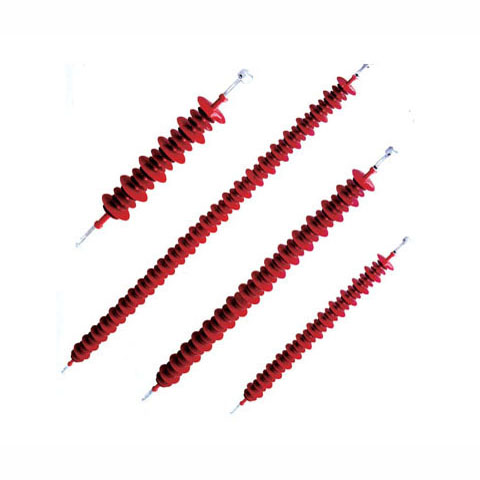

This product for badly polluted areas, high mechanieal nical tension load, long small volume, unbreakable, anti-bend high strenght for antitwist and strong explosion protection.

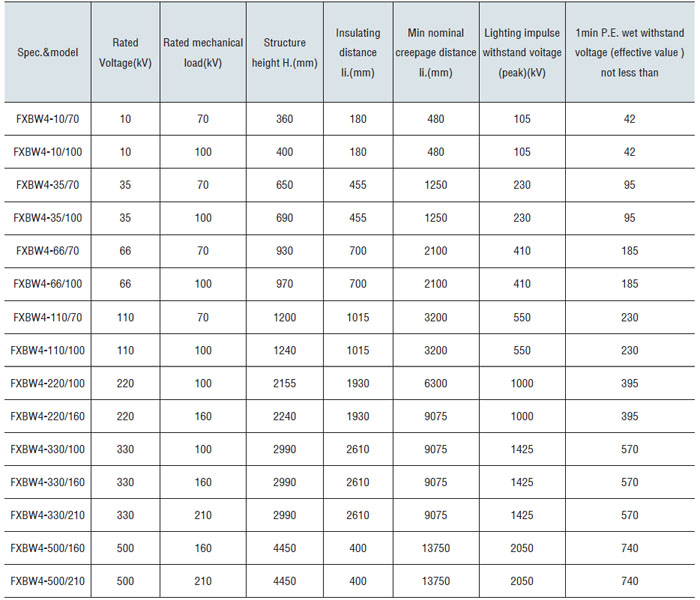

Main technical parameters

Precautions in installation

1.The insulator should be handled with care in carrying or installing, to avoid it colliding and fractioning with parts like the conductor, wiring board, tool as well as sharp material.
2.When the composite insulator is hung, the rope should be tied at the end accessory (fitting), rather than the shed or sheath, if the rope has to touch the shed and sheath, the contact part should be covered with the soft cloth.
3.Even if the material of this insulator shed has the rat-repelling property, some rat-proof measures should be still taken in the storing place just in case. The damaged shed should be rejected.

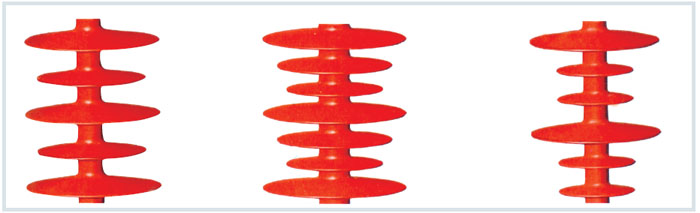

Recommended product:Insulator with reinforced Xl shed

To prevent the insulator flashover for the bird attack and icing , the first piece is given the XL shen in design, the recent years of operation proves that this shed is extremely effexctive.

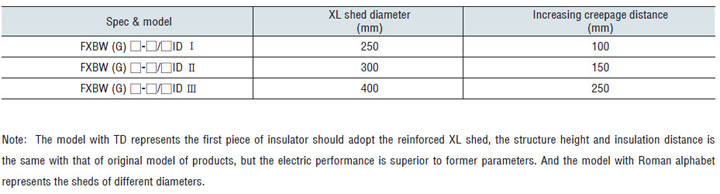

Parameters & characteristics table
